Most
furniture is less than three feet high. If no humans are
nearby, the airspace above such furniture is wasted. For
efficiency, this little 675-square-foot apartment hides an extra
three rooms of furniture four feet under the floor!

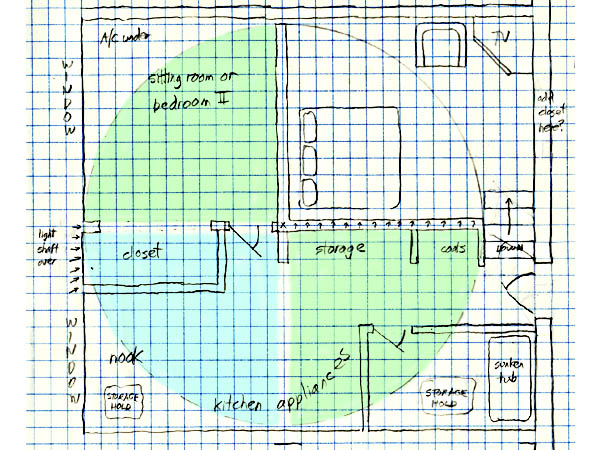

The
key is a 24-foot-diameter turntable. The parts shown in color
are beneath the main floor of the apartment, while the upper right
quadrant forms part of the floor of the sunken great room, four feet
lower than the rest. At present a king-size bed is shown on
this quadrant, which means that the great room is serving as a master
bedroom. Rotate the turntable 90 degrees to hide the bed, and
the "lazy susan" brings in a couch and chairs, converting
the great room into a living room. Another quarter-turn brings
in a formal dining table; another, hobby equipment.
(TEXT
CONTINUED BELOW)

In
the corners not required for the turntable, the extra under-floor
space allows for air conditioning equipment, storage beneath trap
doors, and even a sunken bathtub.
The
apartment's windows are on the left side of the plan (in the sitting
room/second bedroom and in the kitchen's dining nook). Between
them is another window, small and high, which admits light to a shaft
above the closet's lowered ceiling. This white-interior shaft
continues over the storage and coat closets, from whence the light
makes a left turn and enters the great room via clerestory
stained-glass windows near the ceiling as indicated by the little arrows.
The
great room measures 15 feet by 12 feet by 12 feet high. Rooms
this near to cubical have poor acoustics (ringing echoes), so some
sound-deadening materials would be recommended for the outer walls.
|
